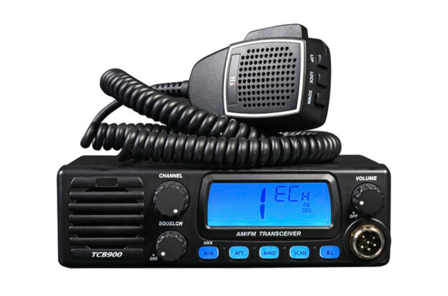

TTI TCB-900
TTI TCB-900
De TTi TCB-900 is een van de laatste modellen van TTi. De TTi TCB-900 heeft een luidspreker aan de voorzijde van het toestel waar door het geluid duidelijker is waneer het toestel wordt ingebouwd d.m.
€ 119,99
Prijs per stuk
Aantal:
Bestellen


De TTi TCB-900 is een van de laatste modellen van TTi. De TTi TCB-900 heeft een luidspreker aan de voorzijde van het toestel waar door het geluid duidelijker is waneer het toestel wordt ingebouwd d.m.v het optionele din inbouwframe. De TTi TCB 900 heeft een 3 kleurig display dat naar eigen wens kan worden ingsteld op kleur.

Features:

  • 4W Output power
  • 26.565 - 27.405 MHz
  • Front mounted speaker
  • Short Body
  • DIN size
  • 12/24V input
  • Multiple bands for usage in most EU countries
  • AM/FM Operation (subject to country regulation)
  • DSS (Dynamic Squelch System)
  • Multi-Colour Backlighting
  • Emergency Channel(9/19) / Keypad Lock function button
  • Microphone Gain
  • Attenuation
  • Scan function
  • Speaker Mute
  • Menu Mode (Microphone Gain, Call tone, Beep Tone On/Off, TOT, Backlight Dimmer)
  • Dimension (W x H x L) : 170 x 51 x 94mm

Technical specifications:

  • Channel: 40
  • Frequency Range: 26.965 MHz - 27.99125 MHz (26.965 MHz - 27.405 MHz (CEPT),
  • Operating Mode: F3E (FM), A3E (AM)
  • Frequency Control: PLL Synthesizer
  • Frequency Tolerance: 0.002%
  • Operating Temperature Range: -10 to 55 Degrees Celsius
  • Microphone: 6 Pin plug in type
  • Antenna Connector: SO239 Type
  • Weight: 978.5g
  • Power Output: Duty cycle 10% 4Watts @13.8V DC
  • Modulation: AM (85% to 95%), FM (1.8KHz +- 0.2KHz)
  • Frequency Response: 300Hz to 3000Hz
  • Output Impedance: 50 ohms, Unbalanced
  • Harmonic Suppression: Less than -54dBm
  • Current Drain: AM Full Mod. 1.6A Max
  • Receiving system: Dual conversion super-heterodyne
  • IF Frequencies: Double Conversion 1st 10.695MHz / 2nd 455KHz
  • Sensitivity: 0.7uV for 10dB (S+N)/N in AM, 0.5uV for 20dB SINAD in FM mode
  • Audio Output Power: 4.0W @ 8 ohm
  • Audio Distortion: Less then 8% @ 1KHz
  • Image Rejection: More than 60dB
  • Adjacent Channel Rejection: More than 60dB
  • Conducted Spurious: Less than -57 dBm
  • Frequency Response: 300 to 2500Hz
  • Built-in Speaker: 8 ohms, round
  • Squelch: Adjustable; Threshold less than 1 microvolt, DSS; Less than 2 microvolt
