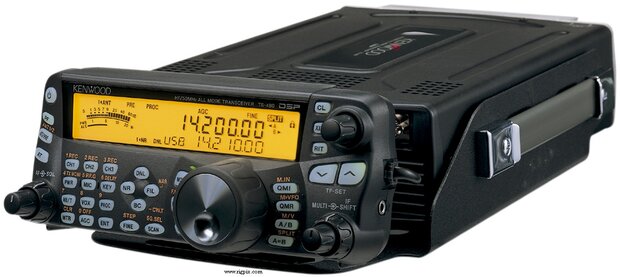

Kenwood TS-480 (Occasion)

Amateur HF/VHF transceiver

• Frequency range:
  • TX: 10-160 m + WARC / 6 m
  • RX: 0.03-60 MHz
• Tuning steps:
  • 1 / 10 / 100 / 500 Hz
  • 1 / 2.5 / 5 / 6.25 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz
  • 1 MHz
• Frequency stability:    ±5 ppm @ -10 to +50°C (14 to 122°F)
• Mode:    AM / FM / NFM / SSB / CW / FSK
• Channels / memory management:
  • 100 regular
  • 10 quick memories
  • Non-volatile EEPROM storage
• Repeater shift / offset:    No dedicated. Use VFO A/B split instead
• Power supply:    13.8 VDC ±15%
• Current drain / power consumption:
  • RX: 1.5 A (No signal)
  • TX: Max 20.5 A

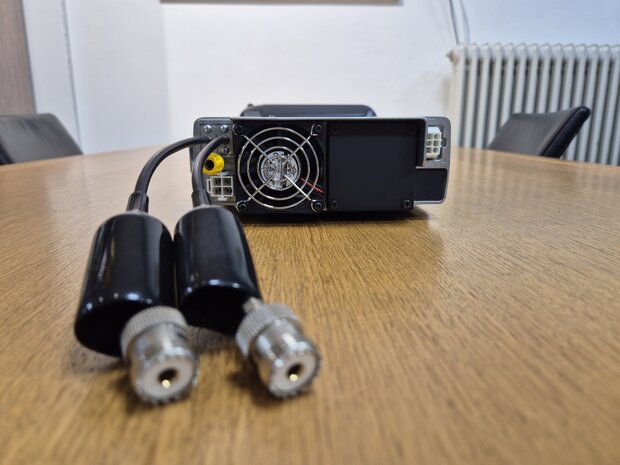

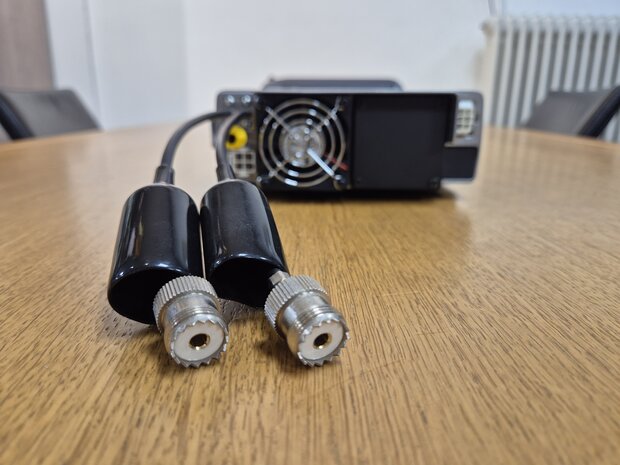

• Antenna impedance / connector:    50 ohm / Two SO-239 (On pigtails)
• Dimensions (W*H*D):    Transceiver: 179*69.5*278 mm
• Control panel: 183*78*68 mm
• Weight:    Transceiver: 3.2 Kg
• Control panel: 500 g (1.1 lb)
• Other features:    CTCSS/PL. Built-in keyer. DSP
• Is gemodificeerd en geschikt voor 27MC

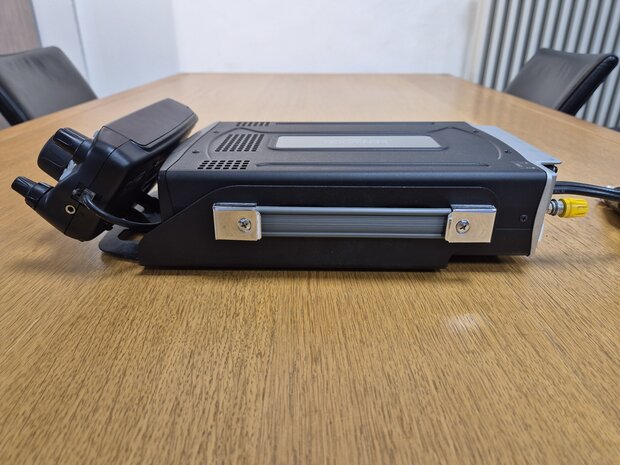

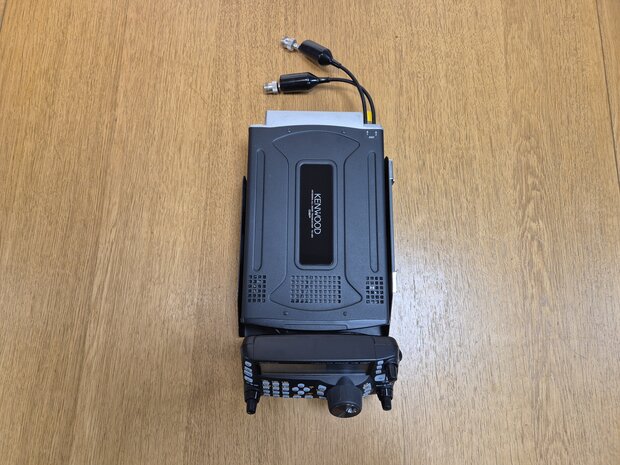

• Inclusief originele slede
